6ES7193-6BP00-0DA0 Siemens ET200SP Base Unit BU15 A0 No AUX
Product Introduction
6ES7193-6BP00-0DA0 is the BU15-P16+A0+2D basic unit (BU type A0) of Siemens SIMATIC ET200SP distributed I/O system, without AUX auxiliary terminals, with a new load group (on the left side of electrical isolation), used for mechanical installation and electrical connection of standard I/O modules.
Key Features
Model: 6ES7193-6BP00-0DA0 (BU15-P16+A0+2D)
Type: A0 type, 15mm ultra-thin width, height 117mm
Terminal: 16 direct insertion process terminals, without AUX auxiliary terminal (A0)
Load group: New load group (D-type), not continuing the left potential, requiring independent power supply
Wiring: Tool free Push in spring terminal, 0.14-1.5mm ² wire diameter
Protection: IP20, industrial grade, CE/RoHS/UL certified

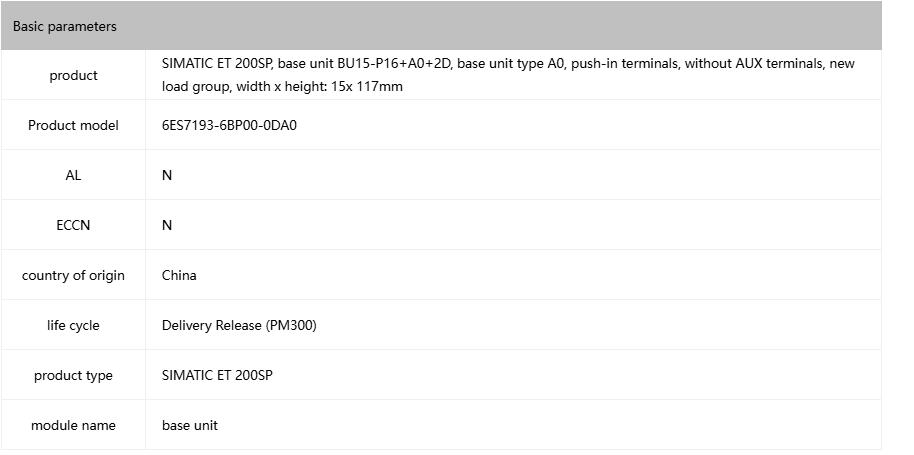

Technical Specifications
Size: 15mm x 117mm x 35mm (width x height x depth)
Power supply: 24V DC, external fuse 10A
Current: P1/P2 bus maximum 10A; 2A per channel
Temperature: Horizontal installation -30 ° C~+60 ° C; Vertical installation -30 ° C~+50 ° C
Installation: 35mm DIN rail, supports hot swapping
Insulation: 707V DC isolation test, electrical isolation between potential groups
Applications
Suitable for machine tools, packaging machinery, logistics equipment, process automation, especially suitable for:
The first base unit of ET200SP station (feeding 24V DC)
Scenarios requiring independent potential groups and electrical isolation
Compact space, standard I/O station without AUX terminals
