6ES7193-6BP00-0BA0 Siemens ET200SP Base Unit BU15 A0 Bridged
Product Introduction

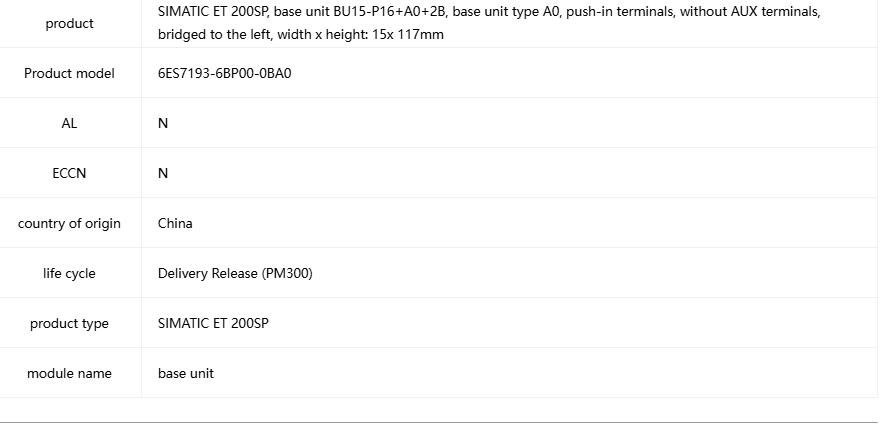

6ES7193-6BP00-0BA0 is the BU15-P16+A0+2B basic unit (BU type A0) of Siemens SIMATIC ET200SP distributed I/O system, without AUX auxiliary terminals, bridging to the left (continuing the left potential), used for mechanical installation and electrical connection of standard I/O modules.
Key Features
Model: 6ES7193-6BP00-0BA0 (BU15-P16+A0+2B)
Type: A0 type, 15mm ultra-thin width, height 117mm
Terminal: 16 direct insertion process terminals, without AUX auxiliary terminal (A0)
Bridge: Left bridge (Type B), automatically extending the left potential group
Wiring: Tool free Push in spring terminal, 0.14-1.5mm ² wire diameter
Protection: IP20, industrial grade, CE/RoHS/UL certified
Technical Specifications
Size: 15mm x 117mm x 35mm (width x height x depth)
Weight: Approximately 40g
Power supply: 24V DC
Current: P1/P2 bus maximum 10A; process terminal 2A per channel
Temperature: Horizontal installation -30 ° C~+60 ° C; Vertical installation -30 ° C~+50 ° C
Installation: 35mm DIN rail, supports hot swapping
Insulation: 707V DC isolation test, electrical isolation between potential groups
Applications
Suitable for machine tools, packaging machinery, logistics equipment, process automation, especially suitable for:
ET200SP station middle/end module, continuing the left 24V potential
Installation of standard digital I/O modules (DI/DO)
Compact space and control cabinet layout without AUX terminals
Multi module continuous arrangement simplifies wiring and power supply
