Spot Original Germany Siemens 6ES7460-1BA00-0AB0 IM460-1 Transmitter Interface Module For S7-400 Centralized Rack Expansion Max 1.5M With Bus Power Supply

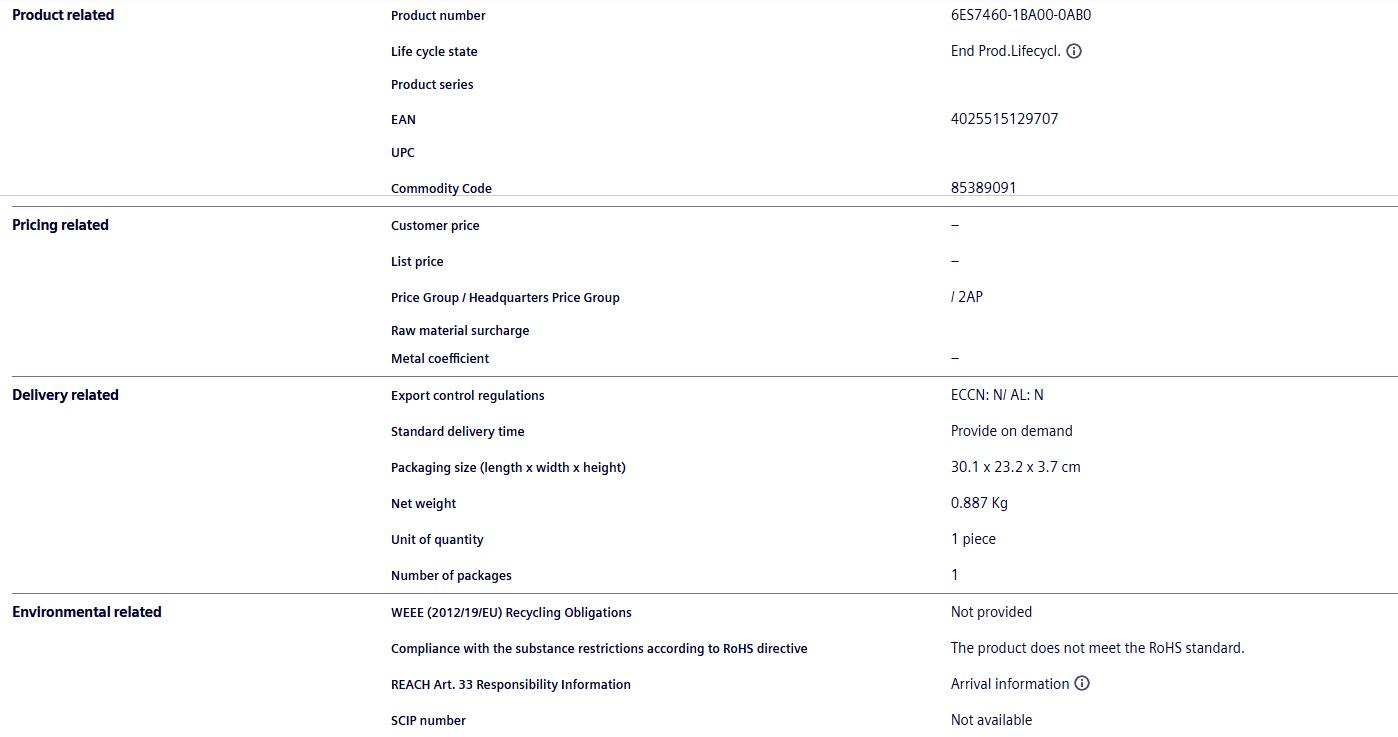

Complete order number: 6ES7460-1BA00-0AB0
Product Model: IM 460-1 Centralized Expansion Sending Interface Module
Adaptation system: Siemens SIMATIC S7-400 PLC mainframe must be paired with IM461-1 (6ES7461-1BA00-0AA0) receiving module for use
Origin: Made in Germany
Maximum transmission distance: 1.5 meters, limited to expansion of close range IO racks within the same control cabinet
Bus type: Only supports P process bus (only transfers IO process image data), does not support K (C) communication bus, cannot achieve global data communication between cross rack CPUs
Power supply characteristics: The 5V working power supply of the backplane can be synchronously transmitted through the expansion bus. The expansion rack does not require an additional PS407 power module and is directly powered by the host rack bus, greatly simplifying cabinet wiring
Scalability: A single module is equipped with 2 expansion bus interfaces, and a single chain can cascade up to 1 expansion rack. A single IM460-1 can carry up to 2 ER expansion racks; A single S7-400 CPU can carry up to 2 IM460-1 modules
Electrical parameters: Backboard 5VDC power supply, maximum working current 85mA, overall power consumption 425mW; S7-400 single slot standard UR rack installation
Fault diagnosis: Equipped with INTF and EXTF status indicator lights, quickly locate rack address dialing errors and bus communication disconnection faults
Supporting cable: Special 6ES7468-3BF00 expansion cable, the total length of the cable cannot exceed 1.5 meters, and it is prohibited to extend it arbitrarily
Working temperature range: 0 ℃~+60 ℃ rack operation, IP20 protection, in compliance with industrial EMC anti-interference specifications
Source status: Brand new factory sealed stock, 12-month warranty, supports global bulk supply of spare parts for foreign trade
