Agent Supply Original Germany Siemens 6ES7432-1HF00-0AB0 SM432 8-Channel Isolated Analog Output Module For S7-400 PLC

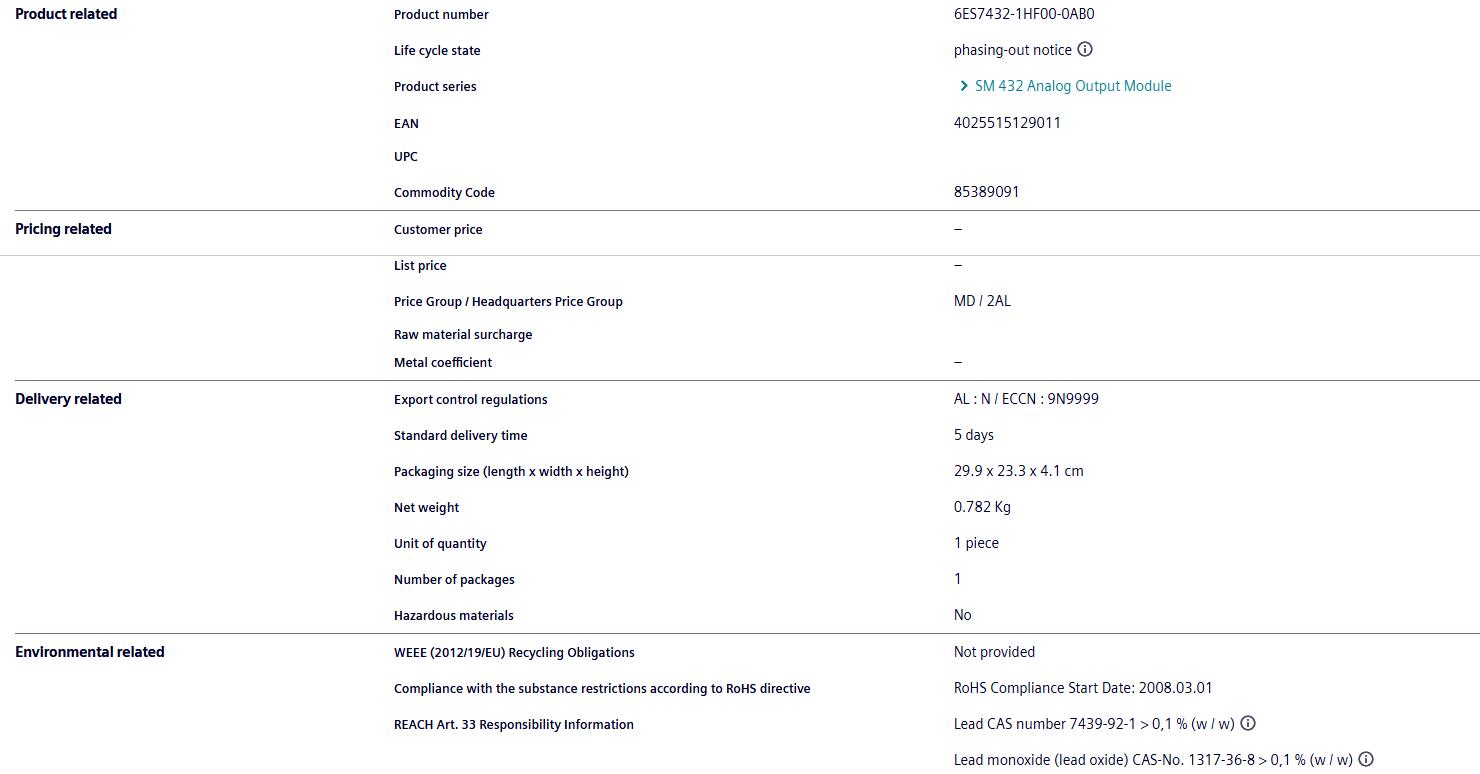

Complete order number: 6ES7432-1HF00-0AB0
Product Model: SM 432 Analog Output Module (8AO, Electrical Isolation Type)
Adaptation system: Siemens SIMATIC S7-400 full series CPU, S7-400H redundant control system
Origin: Made in Germany
Channel specification: 8-channel analog output, with electrical isolation between the channel and the backplane bus
Signal type (can be configured and selected through STEP7 software)
Voltage signal: ± 10V, 0~10V, 1~5V
Current signal: 4~20mA, 0~20mA, ± 20mA
Precision parameter: 13 bit resolution (including sign bit and over range bit)
Voltage output basic error: ± 0.5% FS
Basic error of current output: ± 0.5% FS
Conversion time: Up to 300 μ s for a single channel, 420 μ s for 4~20mA/1~5V modes
Load impedance requirements
Voltage output: minimum load 1k Ω, maximum capacitive load 1 μ F
Current output: Maximum load of 500 Ω (up to 600 Ω when common mode voltage<1V)
Power supply parameters: external DC24V power supply, no-load current 200mA, maximum rated load 400mA; backplane 5V maximum consumption 150mA, typical power consumption 9W
Wiring accessories: A 40 pin front connector (6ES7492-1AL00-0AA0) is required for use
Transmission distance: Shielded cable can be wired up to 200 meters in length
Physical specifications: S7-400 single slot installation, dimensions 25mm × 290mm × 210mm, net weight approximately 0.7kg
Working environment: Operating temperature 0 ℃~+60 ℃, storage temperature -40 ℃~+85 ℃, IP20 protection, industrial EMC anti-interference design
Source status: Siemens authorized agent channel, brand new factory sealed stock, 12-month warranty, supports global bulk foreign trade ordering
