New Original Siemens 6ES7960-1AA04-0XA0 S7-400H Short Distance Synchronization Module Up To 10M Multimode Fiber For V4.x Redundant CPU

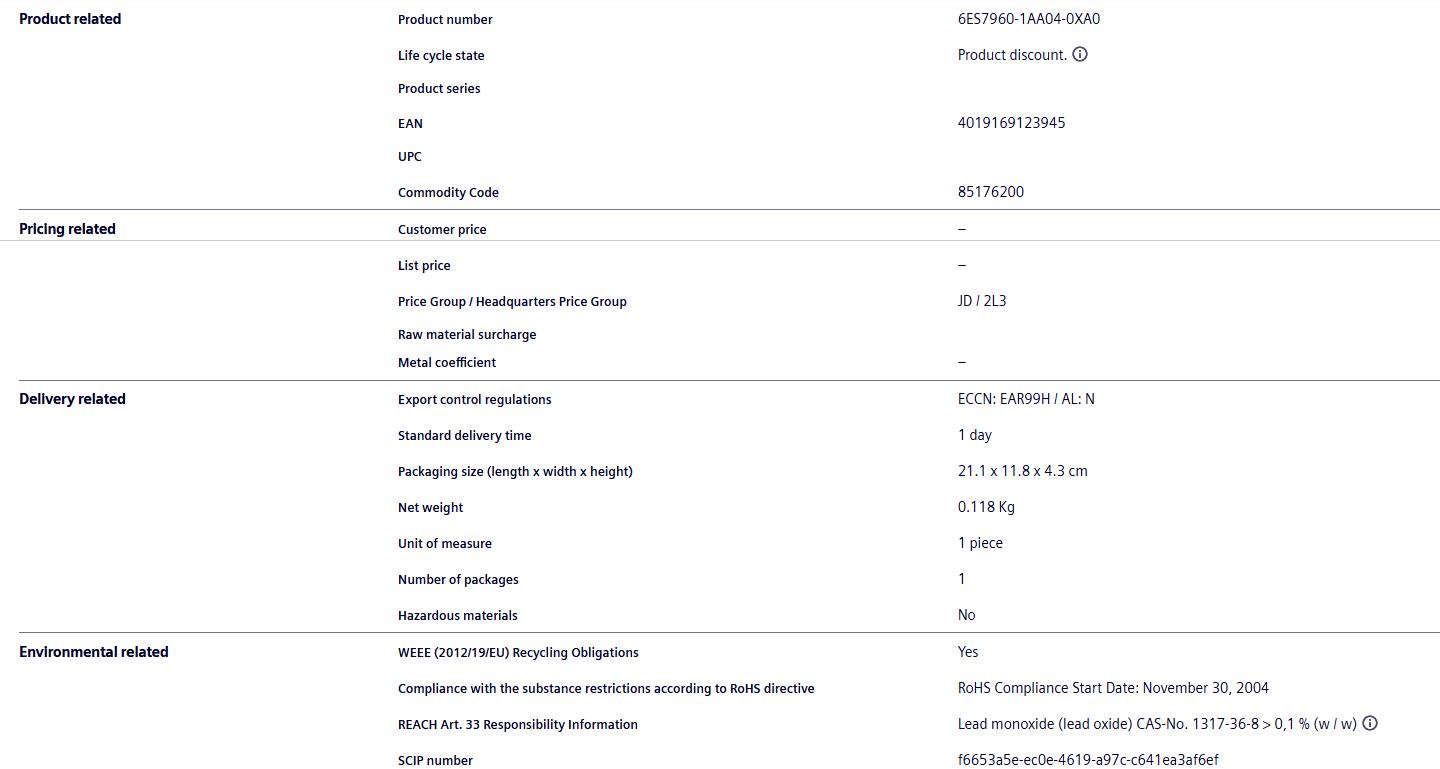

Complete order number: 6ES7960-1AA04-0XA0
Product Name: S7-400H Short Distance Fiber Synchronous SFP submodule, maximum transmission distance of 10 meters
CPU firmware adaptation: Only supports S7-400H CPUs V4.0 and V4.5 (CP412H/414H/417H), and cannot be used for redundant CPUs V6.0 and above in Siemens Industrial Support Center
Origin: Made in Germany
Optical port specification: 850nm wavelength, LC duplex interface, compatible with 50/125 μ m multimode cross synchronous fiber
Power supply method: Powered by S7-400 CPU backplane 3.3V, rated working current 220mA, typical power consumption 0.77Wcache.ndustry.siemens.com
Synchronous transmission rate: 400Mbps high-speed real-time data synchronization, achieving microsecond level seamless and uninterrupted switching in case of main and backup CPU failure
Link parameters: maximum fiber attenuation tolerance of 7.5dB; maximum length difference allowed for two synchronous fibers of 9 meters cache.ndustry.siemens.com
Status indicator lights: OK (module running normally), LINK (fiber optic link communication), quickly locate synchronization link faults
Installation method: CPU side snap on SFP compact installation
Dimensions: 13mm × 14mm × 58mm, net weight approximately 14gcache.ndustry.siemens.com
Working environment: 0 ℃~+60 ℃ rack operating temperature, IP20 protection, industrial EMC anti-interference design
Supporting requirements: A standard S7-400H redundant system requires 4 synchronous modules of the same model and 2 multi-mode cross LC synchronous optical fibers to build a dual link redundant synchronization architecture
Compatible fiber models: 6ES7960-1AA04-5AA0 (1 meter), 5BA0 (2 meters), 5KA0 (10 meters) multimode synchronous fiber
Source status: Brand new factory sealed stock, 12-month warranty, supports global bulk supply of spare parts for foreign trade
