Supply Original Germany Siemens 6ES7416-3ER05-0AB0 SIMATIC S7-400 CPU 416-3 PN/DP PLC Controller 11.2MB Memory Firmware V5.3

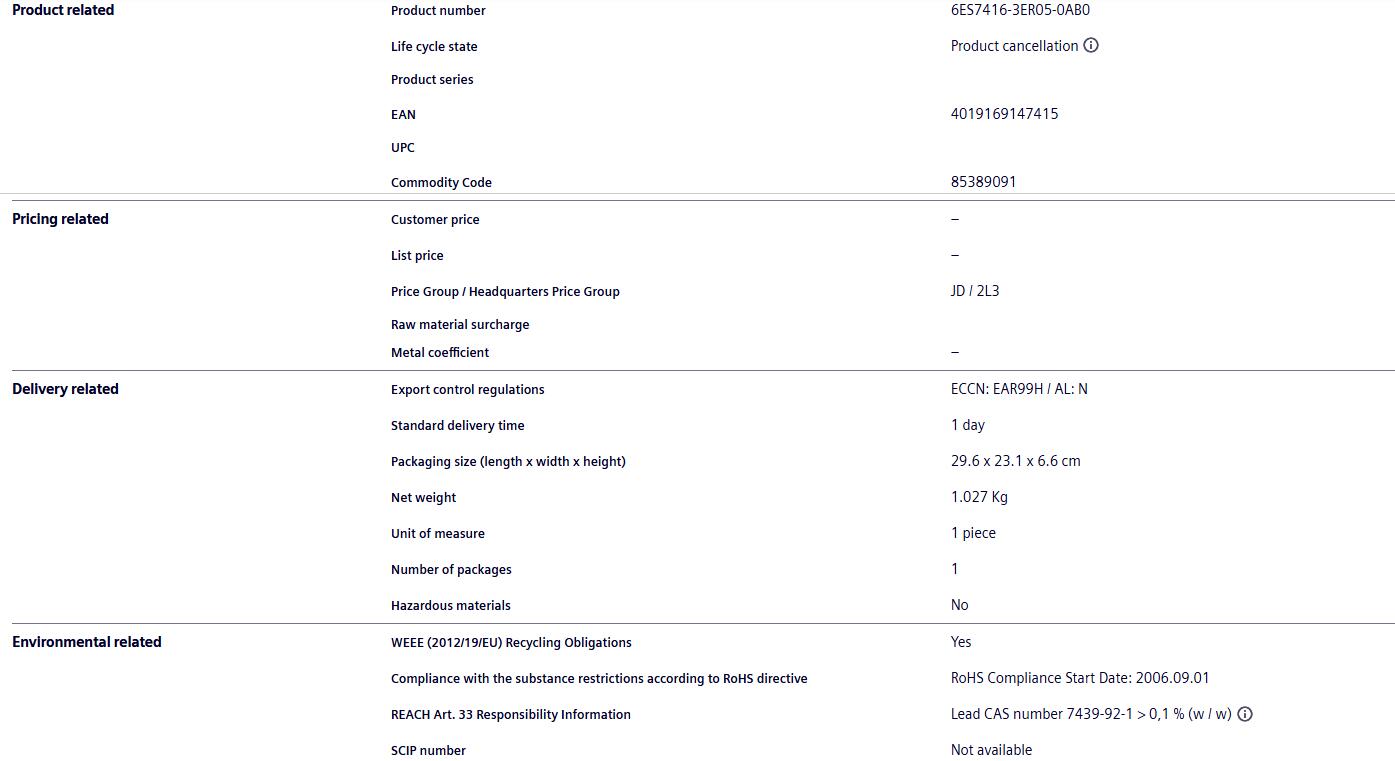

Complete order number: 6ES7416-3ER05-0AB0
Product Model: SIMATIC S7-400 CPU 416-3 PN/DP
Firmware version: V5.3, standard non redundant CPU, supports PROFINET+PROFIBUS dual bus networking
Origin: Made in Germany
Working memory: 11.2MB (5.6MB for program storage and 5.6MB for data storage), expandable up to 64MB S7 dedicated RAM storage card SPS-REVIC
Computational performance: Typical execution time for Boolean instructions is 30ns, floating-point operations are 90ns, supporting large-scale process algorithms, batch data processing, complex chain logic, and high-level massive data interaction 4ind-hub.s
Integrated three-way communication interface
Interface 1: MPI/PROFIBUS DP multiplexing interface, up to 12Mbps, can be used as a DP master station HMI、 Multi CPU S7 communication
Interface 2: Integrated dual port RJ45 PROFINET Ethernet (built-in switch), supporting PROFINET IO controller, open IE communication, web server, S7 routing, real-time Ethernet communication
Interface 3: Expandable IFM function submodule slot, which can be equipped with communication expansion modules such as serial port and positioning SPS SERVIC
IO process addressing capability
Maximum digital quantity: 131072 DI/131072 DO
Maximum Analog Quantity: 8192 AI/8192 AO
The process image area defaults to 1024 bytes for input and 1024 bytes for output, with a maximum consistent transmission length of 244 bytes
Up to 21 racks can be expanded, supporting IM460 series remote expansion, supporting up to 64 S7 communication connections, and can mount multiple upper level, touch screens, and third-party intelligent instruments
Electrical and Environmental Parameters
Power supply method: S7-400 UR rack backplane DC5V power supply, typical working current 1.2A, maximum 1.4ASPS-SERVIC
Protection level: IP20, DIN standard rack installation
Working temperature: Horizontal installation 0 ℃~+60 ℃, storage temperature -40 ℃~+85 ℃
Core functions: Supports CiR online hardware configuration modification, ET200M IO module hot plugging, process interrupt, time interrupt, multi priority OB block, S7 routing, web diagnosis, program online modification and download
Programming software requirements: Minimum STEP7 V5.4 SP5 and above versions, perfectly compatible with PCS7 process control system SPS-SRVIC
Note: Excluding S7-400 dedicated RAM memory card, it needs to be separately selected
Source status: Brand new factory sealed stock, 12-month warranty, supports global bulk supply for foreign trade
