New Original Siemens 6ES7414-3EM05-0AB0 SIMATIC S7-400 CPU 414-3 PN/DP PLC Controller 2.8MB Memory Firmware V5.3

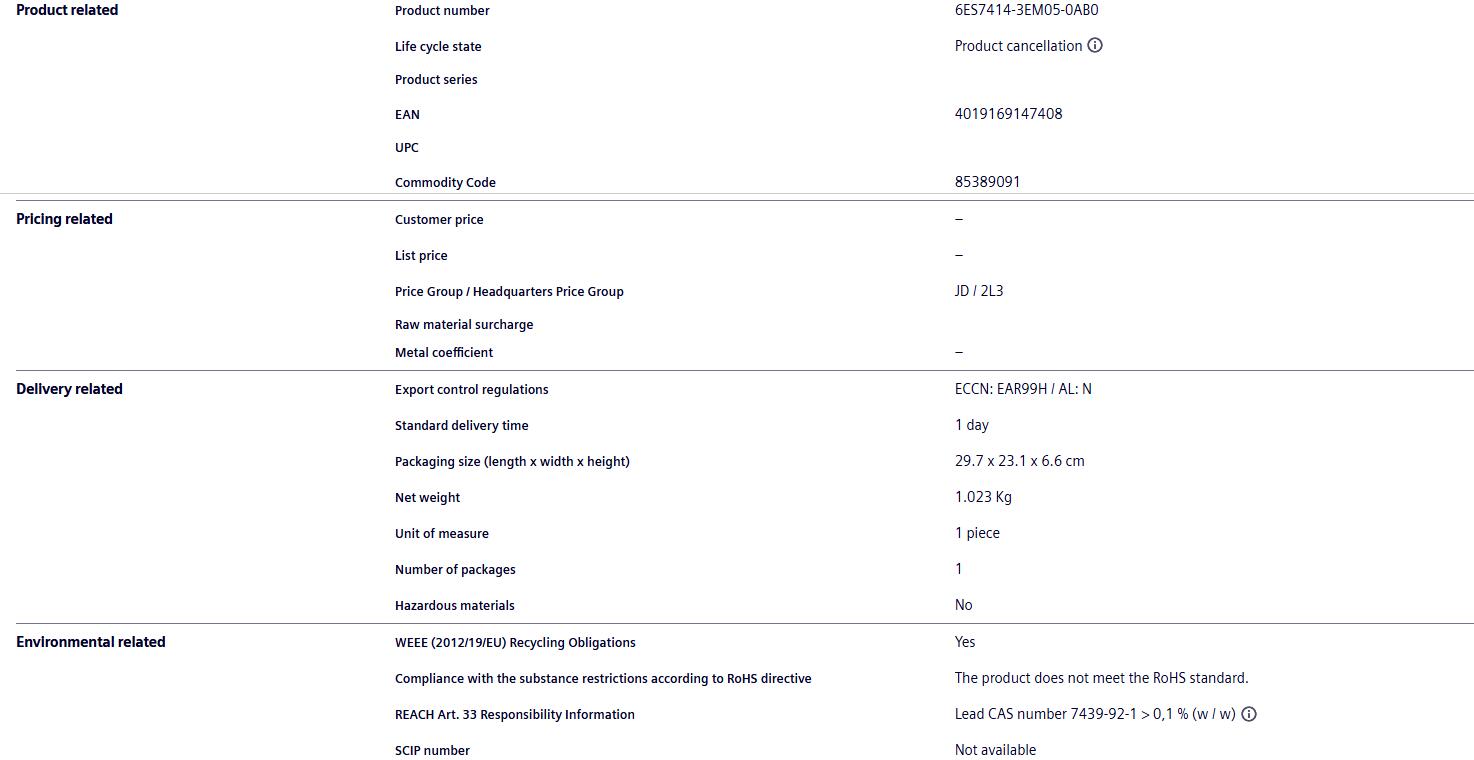

Complete order number: 6ES7414-3EM05-0AB0
Product model: SIMATIC S7-400 CPU 414-3 PN/DP (single machine standard type, non redundant CPU)
Firmware version: V5.3
Origin: Made in Germany
Working memory: a total of 2.8MB (program area 1.4MB+data area 1.4MB), with a maximum expandable capacity of 64MB S7-400 dedicated RAM/EPROM memory card SPS-REVIC
Computing performance: Boolean instruction execution time of 45ns, suitable for medium-sized process control, complex chain logic, batch data interaction, and small and medium-sized DCS system computing processing ManualLib
Three channel integrated communication interface
X1 interface: MPI/PROFIBUS DP multiplexing interface, up to 12Mbps, can be used as a DP master station HMI、 Multi CPU S7 communication, upper PG programming and debugging
X5 interface: RJ45 PROFINET Ethernet port, supporting PROFINET IO controller, open IE communication, S7 routing, web page diagnosis, NTP time synchronization
IF1 expansion slot: can be equipped with IF964-DP submodule, expand one independent PROFIBUS DP master interface, realize dual DP bus networking SPS-SRVIC
IO process addressing capability
Maximum digital quantity: 131072 DI/131072 DO
Maximum Analog Quantity: 8192 AI/8192 AO
The process image area defaults to 1024 bytes for input and 1024 bytes for output, with a maximum consistent transmission length of 244 bytes
Up to 21 racks can be expanded, supporting IM460 series remote expansion, with a maximum of 64 S7 communication connections, capable of mounting multiple touch screens, upper computers, and third-party smart meters
Electrical and Environmental Parameters
Power supply method: S7-400 rack backplane DC5V power supply, typical working current 1.2A, maximum 1.4ASPS-SERVIC
Protection level: IP20, DIN standard rail UR rack installation
Working temperature: Horizontal rack 0 ℃~+60 ℃, storage temperature -40 ℃~+85 ℃
Core functions: Supports CiR online hardware configuration modification, ET200M remote IO module hot plugging, multi priority interrupts, process alarms, S7 routing, and remote fault diagnosis on web pages
Software adaptation: The minimum requirement is STEP7 V5.4 SP5 and above versions, which are perfectly compatible with PCS7 process control system SPS-REVIC
Note: Excluding S7-400 dedicated memory card, it needs to be separately selected
Source status: Brand new factory sealed stock, 12-month warranty, supports global bulk supply for foreign trade
