Proxy New Original Siemens 6ES7214-2AS23-0XB8 CPU224XPsi DC/DC/DC PLC Controller S7-200 CN
As authorized proxy, we supply brand new original Siemens 6ES7214-2AS23-0XB8 (CPU224XPsi) compact PLC, core controller of SIMATIC S7-200 CN series. DC/DC/DC design (24V DC power, input & output), with 14×DC24V digital inputs, 10×DC24V transistor outputs (0.75A/pt), plus 2 integrated analog inputs (AI) and 1 analog output (AO) for direct sensor/actuator connection.
Equipped with 12KB standard / 16KB extended program memory, 10KB data memory, dual RS‑485 communication ports (PPI/MPI/Free‑port), 6×30kHz high‑speed counters, and 2×20kHz high‑speed pulse outputs for precise motion control. Supports up to 7 expansion modules (digital/analog/communication). Factory sealed, CE certified, 12‑month official warranty, global delivery & technical support.

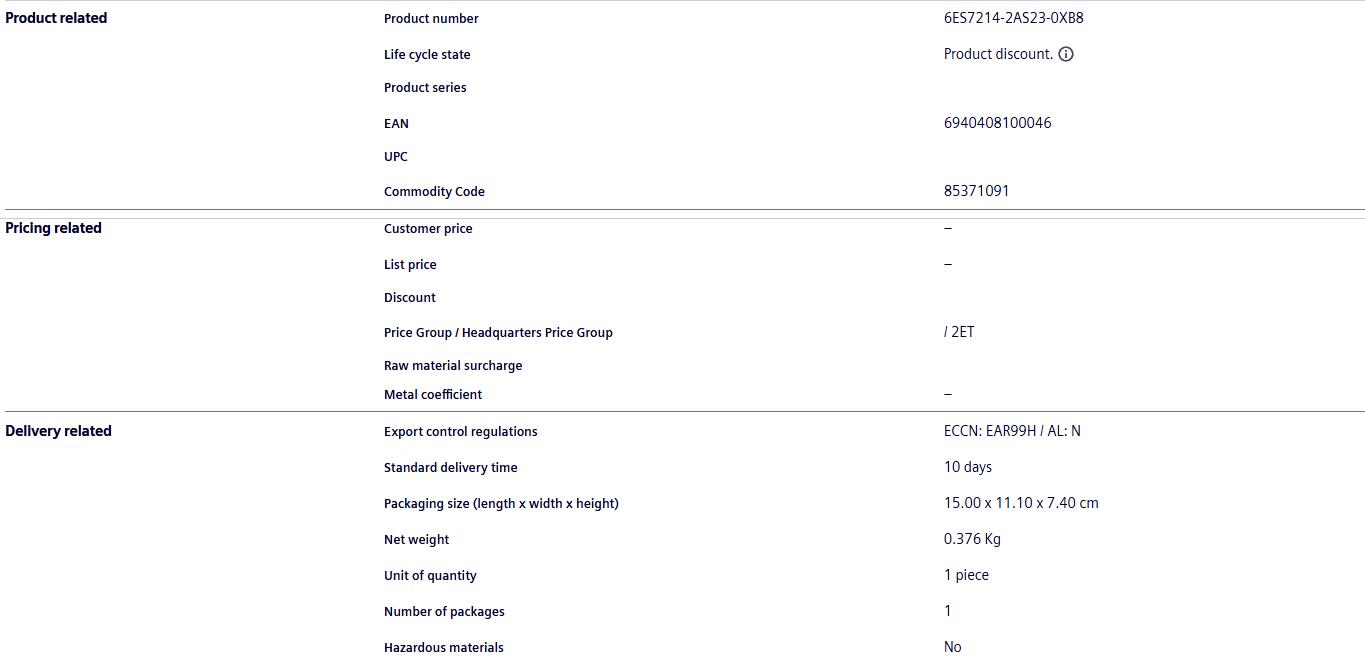

Part No: 6ES7214-2AS23-0XB8
Model: CPU224XPsi (S7-200 CN)
Power Supply: DC 24V (17–30V wide voltage)
Digital Input: 14×DC24V (sink/source)
Digital Output: 10×DC24V Transistor (0.75A/pt)
Analog Input: 2×(voltage/current selectable)
Analog Output: 1×(voltage/current selectable)
Program Memory: 12KB (std) / 16KB (ext)
Data Memory: 10KB
Communication: 2×RS‑485 (PPI/MPI/Free‑port)
High‑speed Functions: 6×30kHz counters, 2×20kHz pulse outputs
Expansion: Max 7 modules (168 digital/35 analog I/O)
Working Temperature: 0°C ~ +55°C
Protection Grade: IP20
Dimensions (W×H×D): 140×80×62 mm
Weight: ≈0.43 kg
